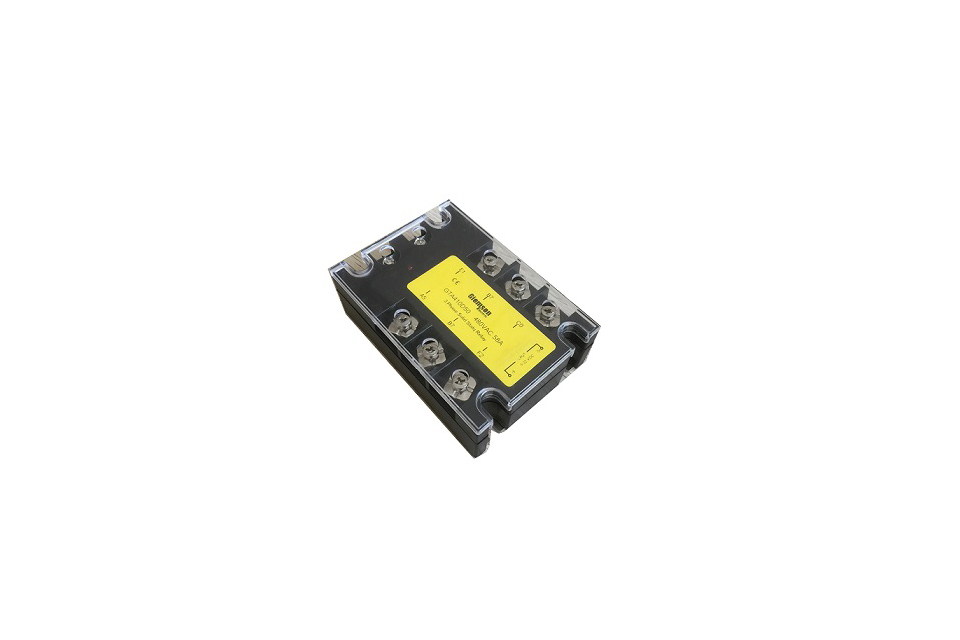

產品性能(Product Characteristics)
- 過零輸出型-阻性負載應用;瞬時輸出型-感性負載應用（Zero Across Output Type Specially Designed for Resitive Loads Random Output Type Specially Designed for Inductive Loads）
-
3-32 VDC 寬控制電壓輸入,內帶限流電路,紅色LED燈指示輸入信號狀況（3-32 VDC Wide Input DC Voltage, with Current Limiter, Red LED Show the Input Signal Status）
-
負載電壓: 24-480VAC,負載電流:10-200 A（Load Voltage: 24-480VAC; Load Current:10-200 A）
-
輸入與輸出采用光隔離,輸入/輸出/底板之間2000VAC隔離（Optical Isolation between Input and Output; 2000 VAC isolation among Input/Output/Base ）
常用型號：
|
產品編號 Part Number |
控制電壓 Control Input |
負載電壓 Line Voltage |
負載電流 Line Current |
輸出類型 Output Type |
| GTA380D10 | 3-32 VDC | 24-480 VAC | 10 A | Zero-On |
| GTA380D10R | 3-32 VDC | 24-480 VAC | 10 A | Random-On |
| GTA380D20 | 3-32 VDC | 24-480 VAC | 20 A | Zero-On |
| GTA380D20R | 3-32 VDC | 24-480 VAC | 20 A | Random-On |
| GTA380D25 | 3-32 VDC | 24-480 VAC | 25 A | Zero-On |
| GTA380D25R | 3-32 VDC | 24-480 VAC | 25 A | Random-On |
| GTA380D40 | 3-32 VDC | 24-480 VAC | 40 A | Zero-On |
| GTA380D40R | 3-32 VDC | 24-480 VAC | 40 A | Random-On |
| GTA380D50 | 3-32 VDC | 24-480 VAC | 50 A | Zero-On |
| GTA380D50R | 3-32 VDC | 24-480 VAC | 50 A | Random-On |
| GTA380D60 | 3-32 VDC | 24-480 VAC | 60 A | Zero-On |
| GTA380D60R | 3-32 VDC | 24-480 VAC | 60 A | Random-On |
| GTA380D80 | 3-32 VDC | 24-480 VAC | 80 A | Zero-On |
| GTA380D80R | 3-32 VDC | 24-480 VAC | 80 A | Random-On |
| GTA380D100 | 3-32 VDC | 24-480 VAC | 100 A | Zero-On |
| GTA380D100R | 3-32 VDC | 24-480 VAC | 100 A | Random-On |
| GTA380D120 | 3-32 VDC | 24-480 VAC | 120 A | Zero-On |
| GTA380D120R | 3-32 VDC | 24-480 VAC | 120 A | Random-On |
| GTA380D150 | 3-32 VDC | 24-480 VAC | 70 A | Zero-On |
| GTA380D150R | 3-32 VDC | 24-480 VAC | 70 A | Random-On |
| GTA380D200 | 3-32 VDC | 24-480 VAC | 90 A | Zero-On |
| GTA380D200R | 3-32 VDC | 24-480 VAC | 90 A | Random-On |
