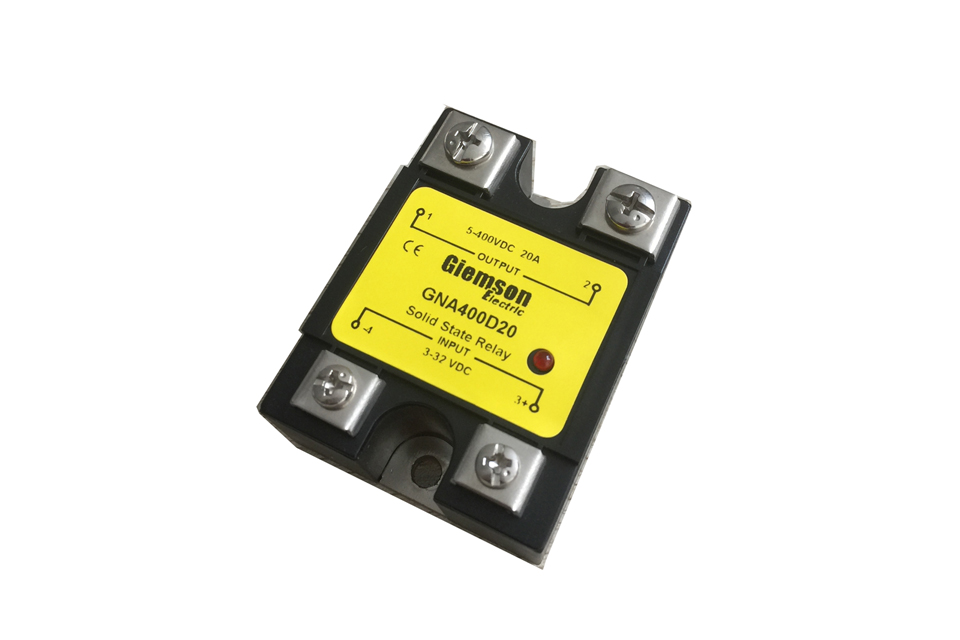

產(chǎn)品性能(Product Characteristics)
- 面板安裝，MOSFET或者IGBT輸出型(Panel Mounted，MOSFET or IGBT Output)
-
3-32 VDC 寬控制電壓輸入,內(nèi)帶限流電路,紅色LED燈指示輸入信號狀況(3-32 VDC Wide Input DC Voltage, with Current Limiter, Red LED Show the Input Signal Status)
-
負載電壓:5-60VDC, 5-100VDC, 5-200VDC, 5-400VDC, 5-500VDC;負載電流:10-100 A(Load Voltage: :5-60VDC, 5-100VDC, 5-200VDC, 5-400VDC, 5-500VDC; Load Current:10-100 A)
- 輸入與輸出采用光隔離,輸入/輸出/底板之間2500VAC隔離(Optical Isolation between Input and Output; 2500 VAC isolation among Input/Output/Base )
|
產(chǎn)品編號 Part Number |
控制電壓 Control Input |
負載電壓 Line Voltage |
負載電流 Line Current |
輸出類型 Output Type |
| GNA60D10 | 3-32 VDC | 5-60 VDC | 10 A | MOSFET |
| GNA60D20 | 3-32 VDC | 5-60 VDC | 20 A | MOSFET |
| GNA60D25 | 3-32 VDC | 5-60 VDC | 25 A | MOSFET |
| GNA60D40 | 3-32 VDC | 5-60 VDC | 40 A | MOSFET |
| GNA60D50 | 3-32 VDC | 5-60 VDC | 50 A | MOSFET |
| GNA60D60 | 3-32 VDC | 5-60 VDC | 60 A | IGBT |
| GNA60D70 | 3-32 VDC | 5-60 VDC | 70 A | IGBT |
| GNA60D80 | 3-32 VDC | 5-60 VDC | 80 A | IGBT |
| GNA60D90 | 3-32 VDC | 5-60 VDC | 90 A | IGBT |
| GNA60D100 | 3-32 VDC | 5-60 VDC | 100 A | IGBT |
| GNA100D10 | 3-32 VDC | 5-100 VDC | 10 A | MOSFET |
| GNA100D20 | 3-32 VDC | 5-100 VDC | 20 A | MOSFET |
| GNA100D25 | 3-32 VDC | 5-100 VDC | 25 A | MOSFET |
| GNA100D40 | 3-32 VDC | 5-100 VDC | 40 A | MOSFET |
| GNA100D50 | 3-32 VDC | 5-100 VDC | 50 A | MOSFET |
| GNA100D60 | 3-32 VDC | 5-100 VDC | 60 A | IGBT |
| GNA100D70 | 3-32 VDC | 5-100 VDC | 70 A | IGBT |
| GNA100D80 | 3-32 VDC | 5-100 VDC | 80 A | IGBT |
| GNA100D90 | 3-32 VDC | 5-100 VDC | 90 A | IGBT |
| GNA100D100 | 3-32 VDC | 5-100 VDC | 100 A | IGBT |
| GNA200D10 | 3-32 VDC | 5-200 VDC | 10 A | MOSFET |
| GNA200D20 | 3-32 VDC | 5-200 VDC | 20 A | MOSFET |
| GNA200D25 | 3-32 VDC | 5-200 VDC | 25 A | MOSFET |
| GNA200D40 | 3-32 VDC | 5-200 VDC | 40 A | MOSFET |
| GNA200D50 | 3-32 VDC | 5-200 VDC | 50 A | MOSFET |
| GNA200D60 | 3-32 VDC | 5-200 VDC | 60 A | IGBT |
| GNA200D70 | 3-32 VDC | 5-200 VDC | 70 A | IGBT |
| GNA200D80 | 3-32 VDC | 5-200 VDC | 80 A | IGBT |
| GNA200D90 | 3-32 VDC | 5-200 VDC | 90 A | IGBT |
| GNA200D100 | 3-32 VDC | 5-200 VDC | 100 A | IGBT |
| GNA400D10 | 3-32 VDC | 5-400 VDC | 10 A | MOSFET |
| GNA400D20 | 3-32 VDC | 5-400 VDC | 20 A | MOSFET |
| GNA400D25 | 3-32 VDC | 5-400 VDC | 25 A | MOSFET |
| GNA400D40 | 3-32 VDC | 5-400 VDC | 40 A | MOSFET |
| GNA400D50 | 3-32 VDC | 5-400 VDC | 50 A | MOSFET |
| GNA400D60 | 3-32 VDC | 5-400 VDC | 60 A | IGBT |
| GNA400D70 | 3-32 VDC | 5-400 VDC | 70 A | IGBT |
| GNA400D80 | 3-32 VDC | 5-400 VDC | 80 A | IGBT |
| GNA400D90 | 3-32 VDC | 5-400 VDC | 90 A | IGBT |
| GNA400D100 | 3-32 VDC | 5-400 VDC | 100 A | IGBT |
| GNA500D10 | 3-32 VDC | 5-500 VDC | 10 A | MOSFET |
| GNA500D20 | 3-32 VDC | 5-500 VDC | 20 A | MOSFET |
| GNA500D25 | 3-32 VDC | 5-500 VDC | 25 A | MOSFET |
| GNA500D40 | 3-32 VDC | 5-500 VDC | 40 A | MOSFET |
| GNA500D50 | 3-32 VDC | 5-500 VDC | 50 A | MOSFET |
| GNA500D60 | 3-32 VDC | 5-500 VDC | 60 A | IGBT |
| GNA500D70 | 3-32 VDC | 5-500 VDC | 70 A | IGBT |
| GNA500D80 | 3-32 VDC | 5-500 VDC | 80 A | IGBT |
| GNA500D90 | 3-32 VDC | 5-500 VDC | 90 A | IGBT |
| GNA500D100 | 3-32 VDC | 5-500 VDC | 100 A | IGBT |
